Introduction


ENJOY THE SPACE

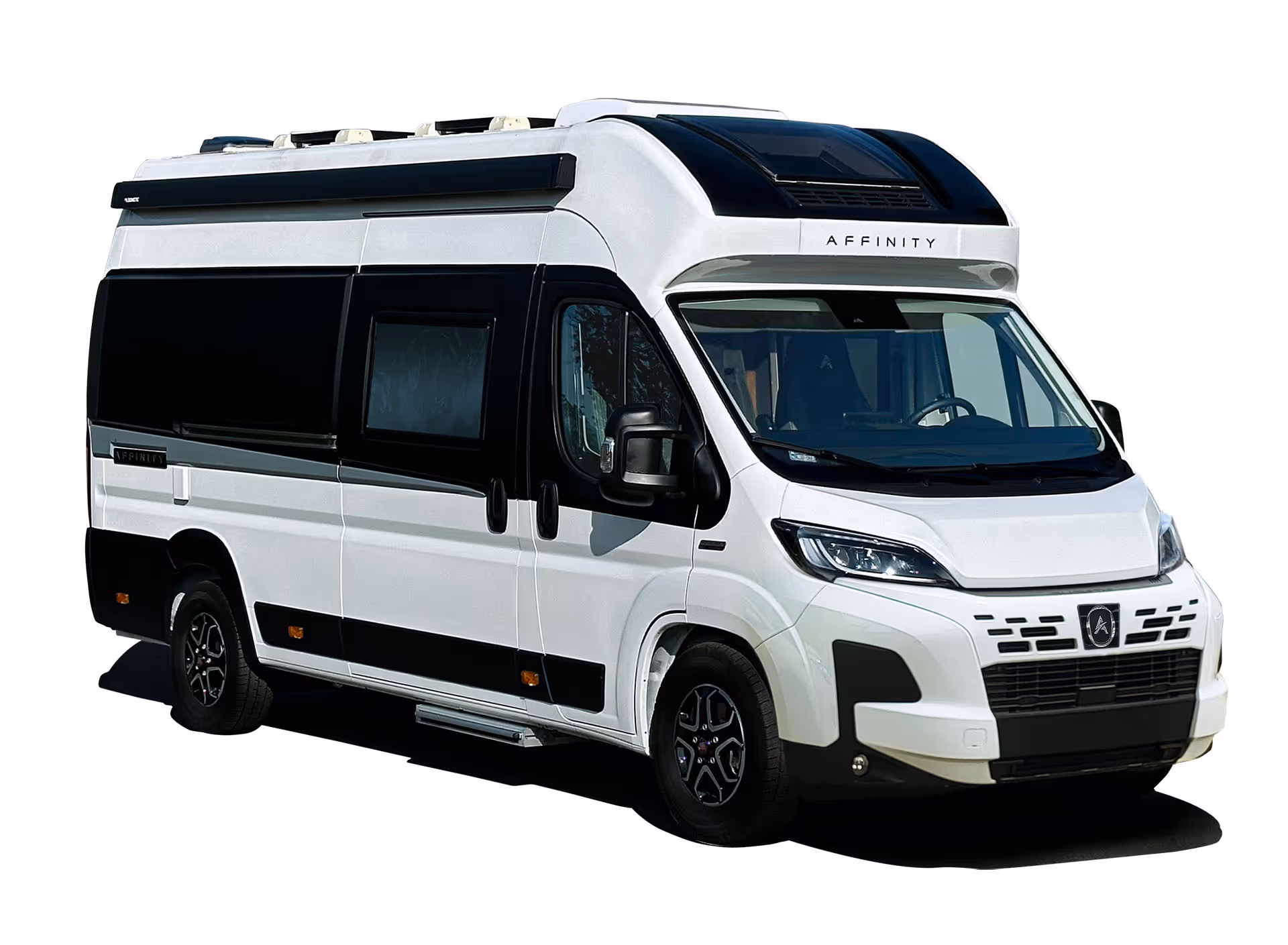

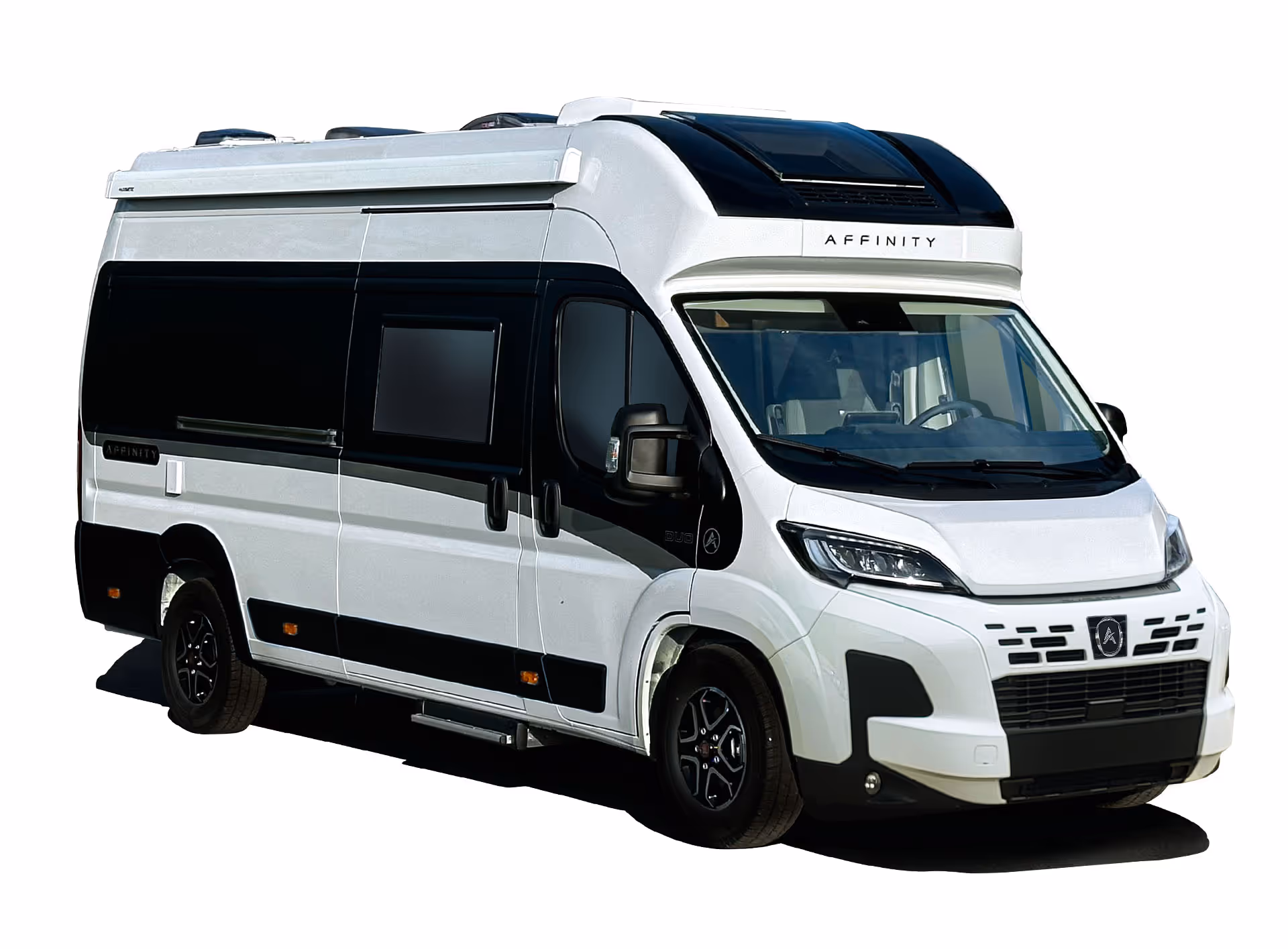

The Affinity Camper Van offers a comfortable living space for up to four people. Flexible configuration allows the vehicle to be adapted to a variety of user needs, from two travellers to a family of four. Based on the largest van in the Fiat and Peugeot range, it is designed to provide maximum interior space.

Its unique layout, large roof windows, pleasant and indirect lighting, modern materials and neat furniture colours together create a homely and spacious interior.



BE COMFORTABLE


Wide and comfortable sliding doors lead to the camper’s spacious interior. Everything from lockers and cabinets to technical equipment is easily accessible.

An L-shaped kitchen with a large worktop, integrated shower cabin, cosy dining and bedroom areas make the Affinity a truly comfortable recreational vehicle.


FEEL AT HOME


The Affinity Camper Van stands for top-quality materials as well as top-notch design and functionality. Comfortable armchairs and beds in the camper’s aesthetically pleasing interior will make you feel right at home.


sleep well


Fitting beds for four people inside a vehicle this big is quite a challenge as it requires an innovative approach and out-of-the-ordinary ideas.

The Affinity Camper Van can be configured with up to four comfortable sleeping places: a large French double bed in the back and a unique foldable bunk bed in the front.


floor plans

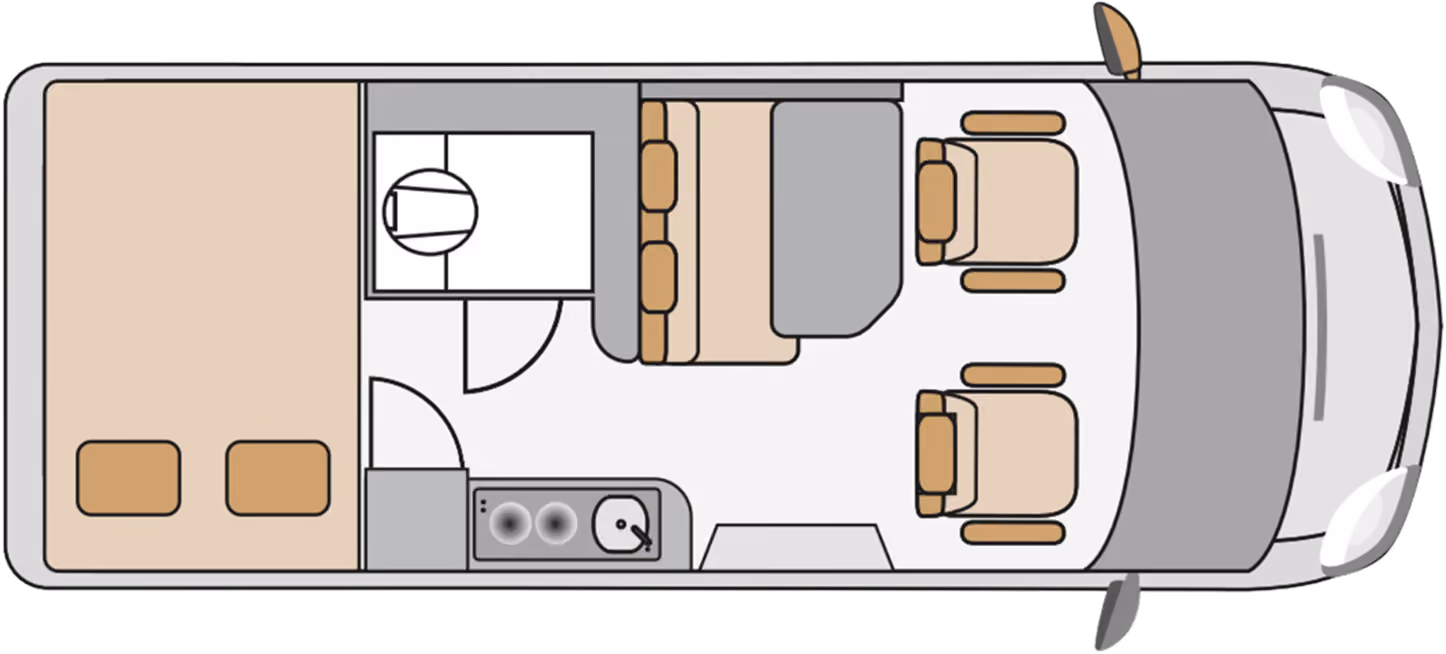

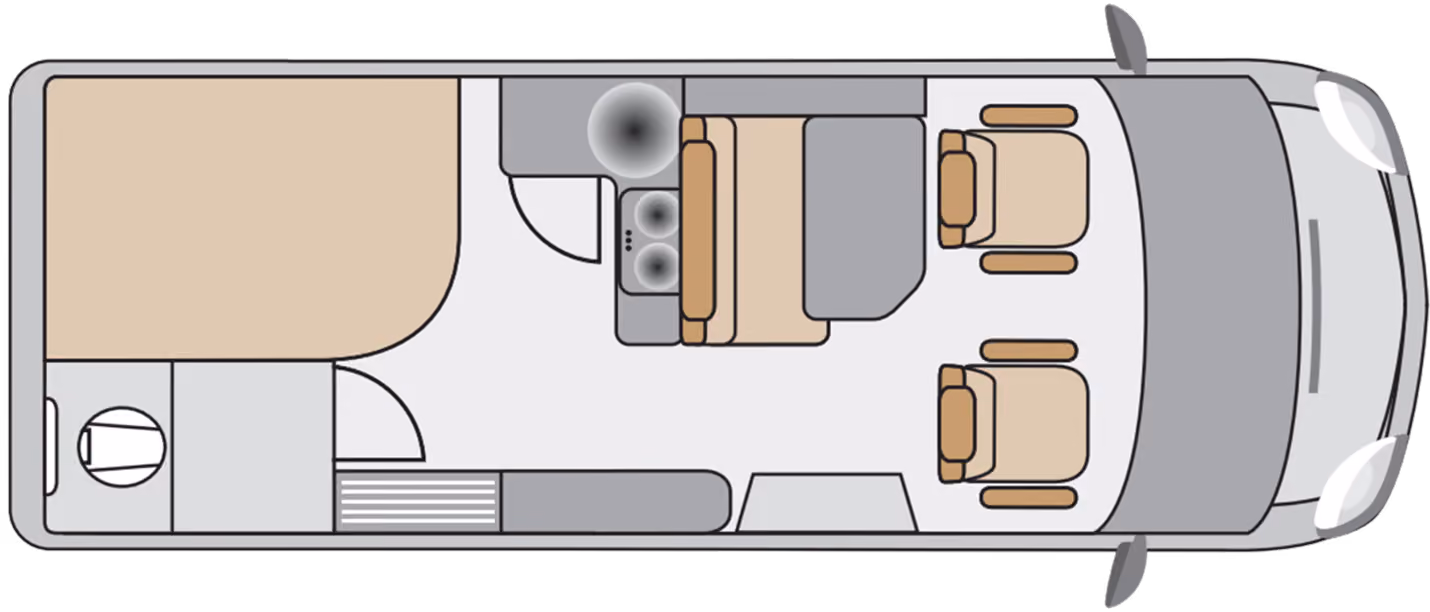

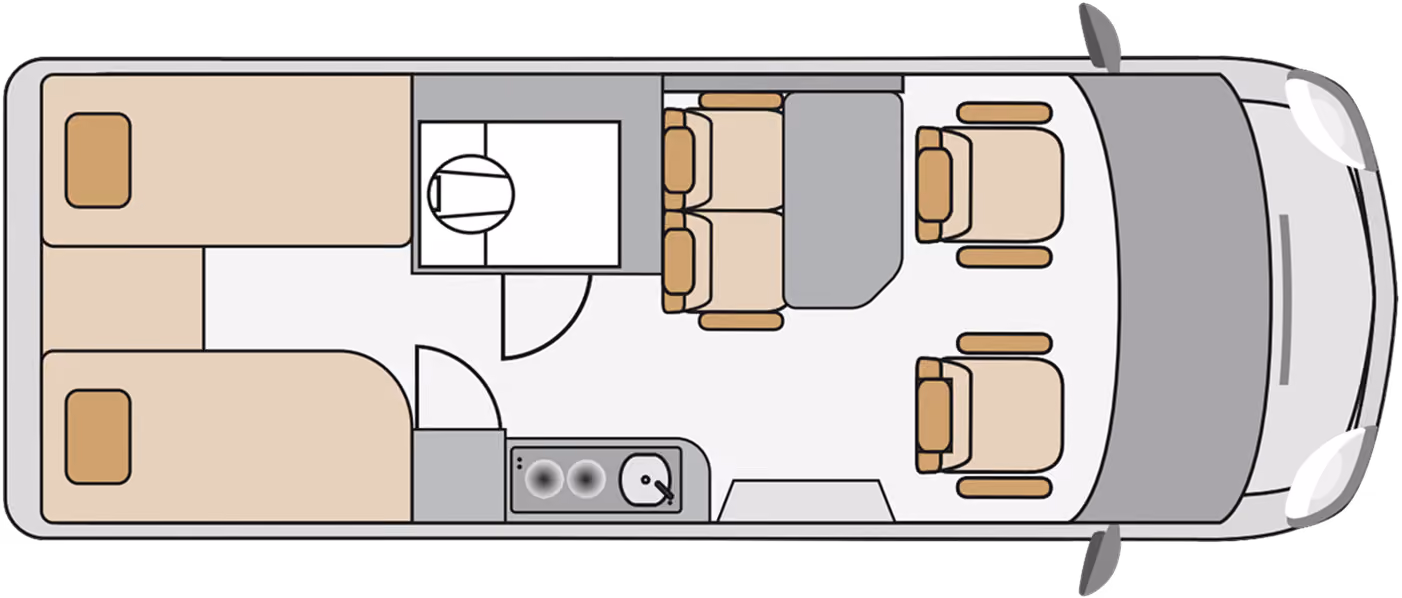

Affinity Floor Plan Day

DAY

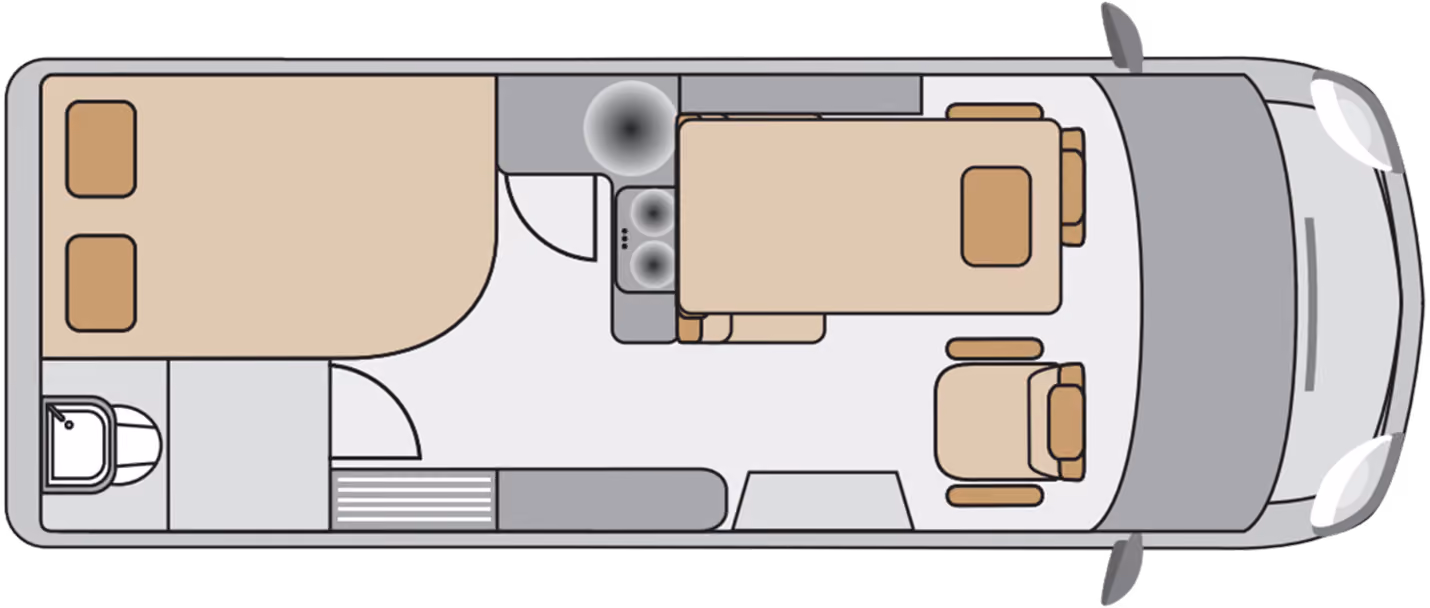

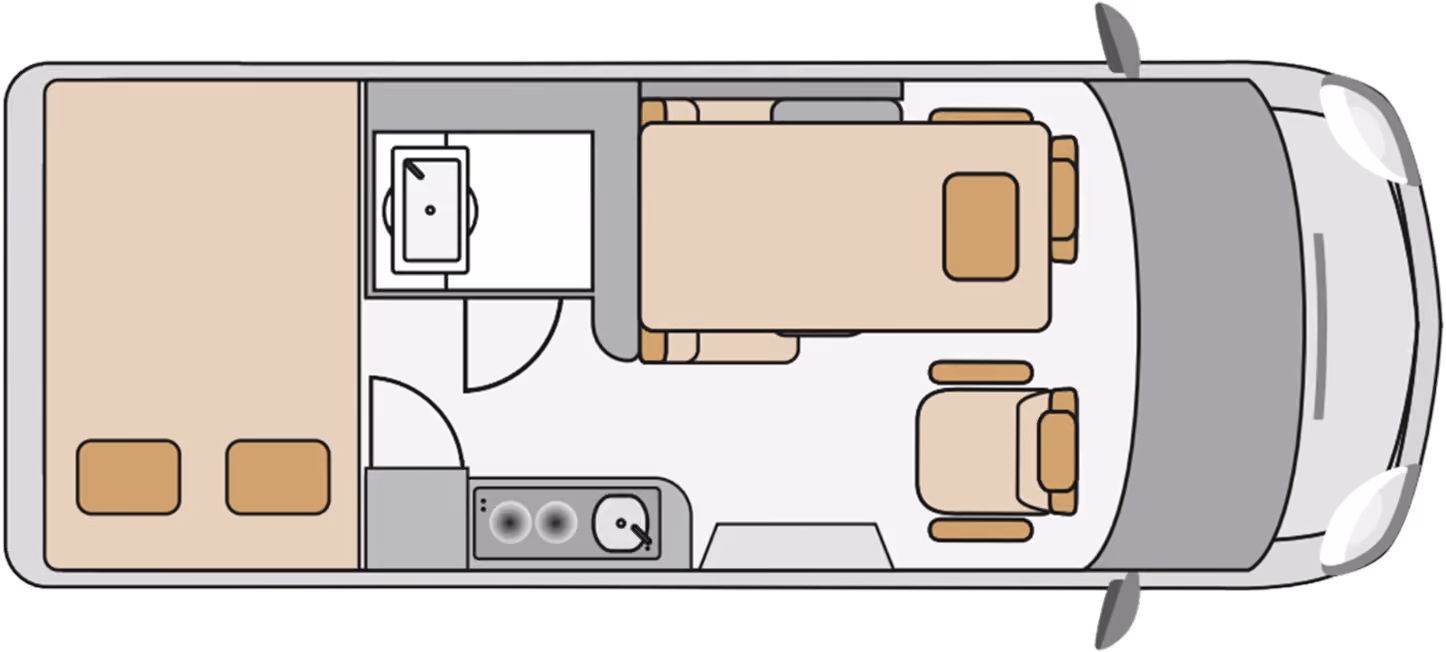

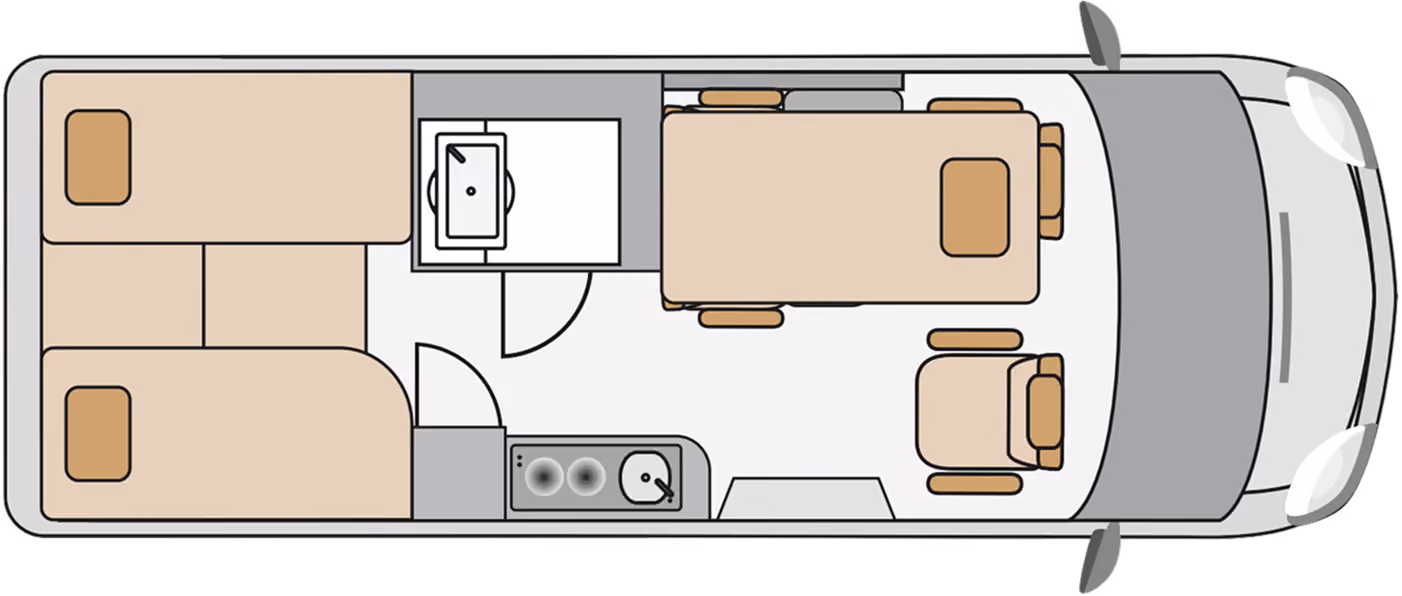

Affinity Floor Plan Night

NIGHT

CONCEPT


The Fiat Ducato and its twin Peugeot Boxer provide the best platform for a camper as they offer the greatest freedom in terms of interior design.

We modified the sidewalls, widening the frame by a few centimetres on each side, thanks to which we were able to fit a French bed inside that is almost 130 centimetres wide.We also made modifications to the front part of the roof by installing a large window above the cab. This allowed us to gain additional useful space and create a vehicle that is easy on the eye.

Under the bonnet, we have taken a completely new approach by placing heavy technical components such as a second battery as well as clean and grey water tanks at the rear for optimal weight distribution.

A modern electric system ensures the reliable operation of all the accessories installed. The lithium battery, numerous electrical sockets, USB ports and a wireless phone charger guarantee comfort of use. In the boot, there is a special pocket with a 230V socket for an electric vehicle charger. The vehicle can be equipped with solar panels of up to 360 watts.

The Affinity Camper Van is fully prepared for use in winter thanks to its double floor and excellent insulation. Heating is provided by Truma Combi. The entire water system, including the tanks, is located in the heated space.

A relatively large bathroom is located in the back of the van next to the French bed and inside you will find a foldable washbasin and a cabinet equipped with 230 V socket behind the mirror.


INNOVATION

Sliding bed
Sliding bed

Hover on or tap the picture.

Sliding bed
Sliding bed

Hover on or tap the picture.


The Affinity is the only camper van that comes with a spacious L-shaped kitchen. Thereby it is now a pleasure to prepare meals inside the vehicle.

However, the biggest innovation is the beds. Thanks to the raised head, the main bed can be slid away thus increasing the kitchen area. The main bed can be equipped with an electric lifting mechanism. This way, the already large boot will become big enough to carry two normal-sized bicycles.

Technical Specifications


Affinity Standard:

4 seats, 2 berths (optional 4+3, 4+4)

French bed with adjustable bedhead

Truma Combi 4E heating

120 Ah lithium (LiFePO4) leisure battery

Double floor

Cabin blinds

Automatic slide-out step (70 cm)

Side Door Fly Screen

Wireless mobile phone charger

Roof window with electric fan in the kitchen

Roof window with electric fan in the bathroom

OPTIONAL EQUIPMENT:

Version with 3 or 4 berths

Upgrade to Truma 6E, D6, D6E

Air conditioning system Truma Aventa Comfort

Pneumatic rear axle suspension

Solar kit (monocrystalline) up to 360W with MPPT controller + Bluetooth

Awning

Softclose

External shower

Inverter cables preinstallation

2 additional speakers

Towing hook

Approved for 2 people

Dimensions and weight:

Length

636 cm
Width

210 cm

Height
280 cm
Weight in running order (including driver)

3090 kg

Internal clearance
196 cm
Size of the French bed

192 x 129 cm

Bunk bed upper level
192 x 67 cm
Bunk bed lower level
182 x 67 cm

Permissible tolerance of masses and dimensions +/- 5%. *Mass in running order is understood as: Mass of an empty vehicle including tools, fuel tank 90% full, driver's weight 75 kg, 11 kg filled aluminium gas cylinder, 20 litres in the clean water tank.

About US

The Affinity brand was born from passion and experience. The pursuit of excellence and the strong belief that every project can be made even better have led us to look for new, innovative solutions. Our camper vans’ versatility and agility drive the rapid growth of customer demand for this type of motorhome. Unfortunately, the offer of premium-quality vehicles does not always meet customer expectations. These were the main reasons why we decided to launch a completely new project. High quality, exceptional utility, attractive appearance and attention to detail best describe the values we believe in and aspire to.

Supported by a strong partner (the largest Scandinavian motorhome and caravan manufacturer, KABE AB), the production of Affinity Camper Vans started in January 2020.
