AFFINITY five

Base vehicle: Fiat Ducato
Engine: 2.2L, 180HP
Gearbox: 9 gear automatic transmission
Dimensions: 636 x 210 x 290 cm

Number of seats: 5
Day
Sleeping places: 5
Night

AFFINITY five

Base vehicle: Fiat Ducato
Engine: 2.2L, 180HP
Gearbox: 9 gear automatic transmission
Dimensions: 636 x 210 x 290 cm

Number of seats: 5
Sleeping places: 5
Day
Night

Family Vacation

Affinity Five is one of the few campervans dedicated to a family of five. Despite the limitations resulting from the small area, the functional layout of this campervan allows comfortable traveling in a combination 2+3 (two adults and three children). The space that this vehicle offers is comparable to much longer campervans or caravans.

Calm sleep

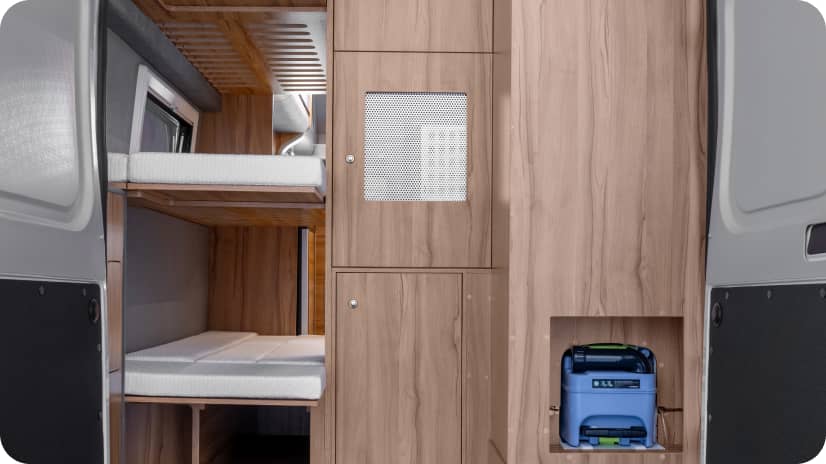

There is a three-level bunk bed at the rear of the vehicle. The standard length of the mattresses is 135 cm, but each of the levels can be individually extended to 170 and 180 cm. The sofa at the front of the campervan can be converted into a comfortable double bed in a few easy steps. Thickness and quality of the mattresses used in the front sofa guarantee a calm sleep.

The sofa at the front of the campervan can be converted into a comfortable double bed in a few easy steps. Thickness and quality of the mattresses used in the front sofa guarantee a calm sleep.

Comfort of use

The space around the kitchen and the bathroom is a significant advantage of an Affinity Five. Even a large family can function in it without difficulty. There is enough space for adult travel participants to cook while kids can find the space to play.

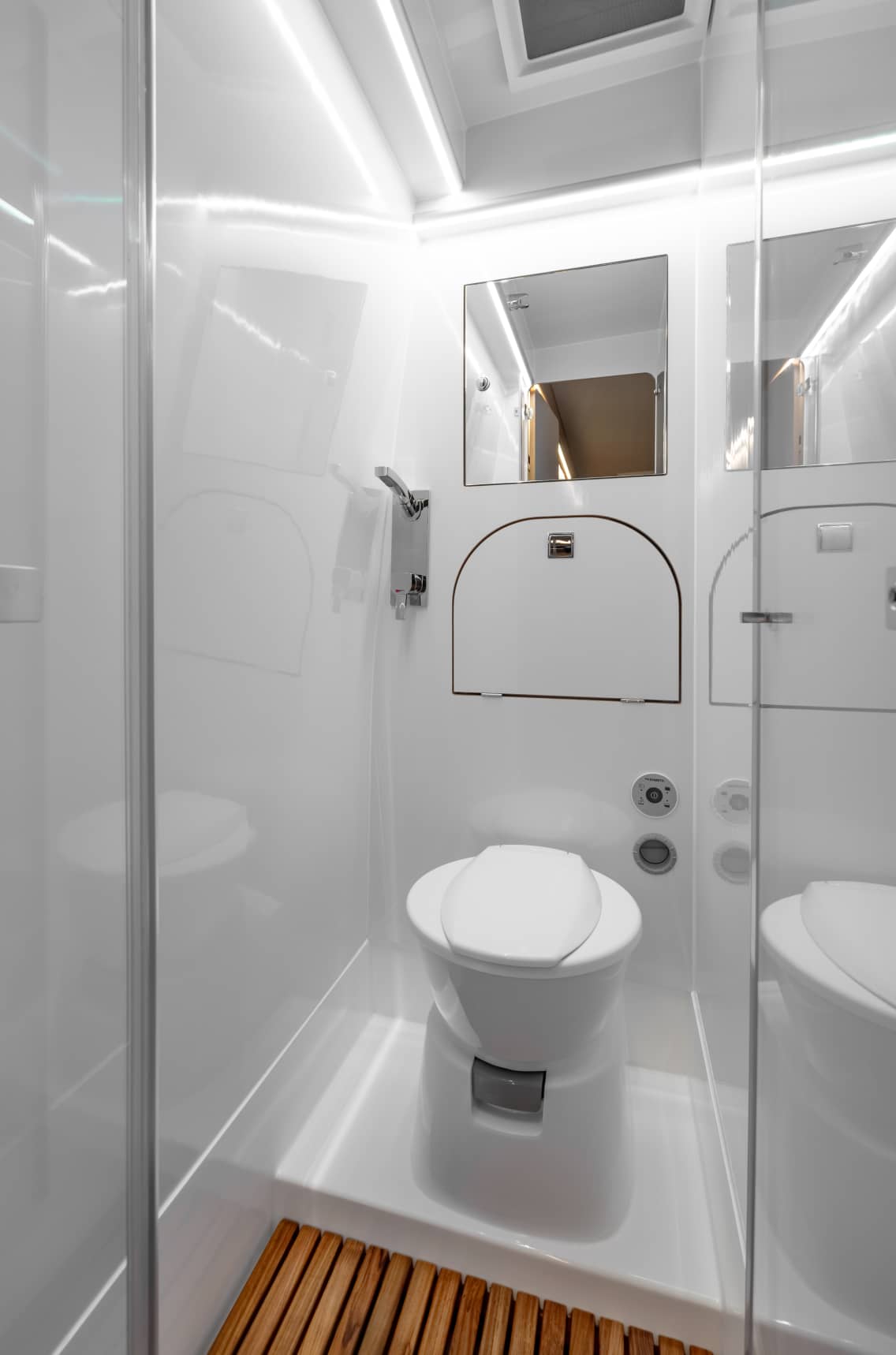

The joy of bathing

The sanitary part in Affinity Five is a copy of the solution known from our first model. This proven and well rated by the customers layout of the bathroom with an integrated shower cabin and a foldable sink guarantees bathing comfort that is unique in this class of campervans.

FLOOR PLANS

Day
4
3
2
1
1
Integrated
2
Cassette, 19 litres
3
Gas, 2 burners
Night
2
1
1
188 x 125 cm
2
Upper bed:
172 x 62 cm
Middle bed:
180 x 69 cm
Bottom bed:
172 x 62 cm

CONCEPT

There are few manufacturers on the European market that offer campervans for 5 people. Affinity Five is the answer to the needs of 2+3 families. Our model is a winter version with a double floor and great insulation. All water tanks are located inside the vehicle. This allows for use of the campervan even in extremely low temperatures.

Innovations

The interior layout of the Affinity Five is unique. The triple bunk bed at the rear of the vehicle is a solution used so far in large caravans. Thanks to  the folding options of the bed, the space in the boot can be used for transporting skis or other long items. The luggage compartment provides enough space for all items necessary for travel.

TECHNICAL SPECIFICATIONS

FIAT DUCATO

2.2L, 180HP
9 gear automatic transmission
Passenger-side airbag
Full LED headlamps
Read more

Standard Equipment

5 seats for driving, 5 sleeping berths
Truma Combi 4E gas-electric heating
LiFePO4 135 Ah Board Battery
Double floor
Cab window blinds
Electric entry step (70 cm)
Flyscreen on entry door
Cordless phone charger
Roof vent with electric fan in kitchen
Skylight with electric fan in lavatory
Wall, floor and ceiling insulation
10/20mm
Shower cabin
Integrated
Chemical toilet
Cassette, 19 L
Cooker
Gas, 2 burners
Refrigerator
70 L
Fresh water tank (insulated)
100 L
Grey water tank (insulated)
100 L

Optional Equipment

Truma 6E heater
Truma D6E
Solar package (monocrystalline) 240W Flex MPPT, BT
Solar package (monocrystalline) 300W Flex MPPT, BT
Solar package (monocrystalline) 360W Flex MPPT, BT (option without roof air conditioning)
LiFePO4 200 Ah Winter board battery with BT
LiFePO4 300 Ah Winter board battery with BT
Gel Battery
Büttner 1700 pure sine wave inverter
Inverter cabling system
Truma Aventa Comfort roof air conditioning
Wooden shower mat
White awning
Black awning
Keder Rail
Tow bar
Heated front seats
Pneumatic rear-axle suspension
Softclose
External shower
TV cabinet (holder only)
TV cabinet (holder only + 18,5’ TV)
TV cabinet (holder only + 18,5’ Smart TV)
External TV socket
Caratec LTE Antenna plus router
Oyster Connect
LCD control pane
2 additional speakers
Mattress with additional layer
Bed sheet with Affinity Logo
Seat cover with Affinity logo

DIMENSIONS AND WEIGHT

Interior height
196 cm
French bed dimensions
188 x 125 cm
Dimensions of the bunk bed:
Upper bed
172 x 62 cm
Middle bed
180 x 69 cm
Lower bed
172 x 62 cm
Weight in running order
3050 kg
Mass of the vehicle in running order is defined as the mass of the vehicle including equipment, fuel tank 90% full, 75 kg driver weight, full 11L aluminium gas bottle, 20L of water in the system. Margin of error +/- 5%.
