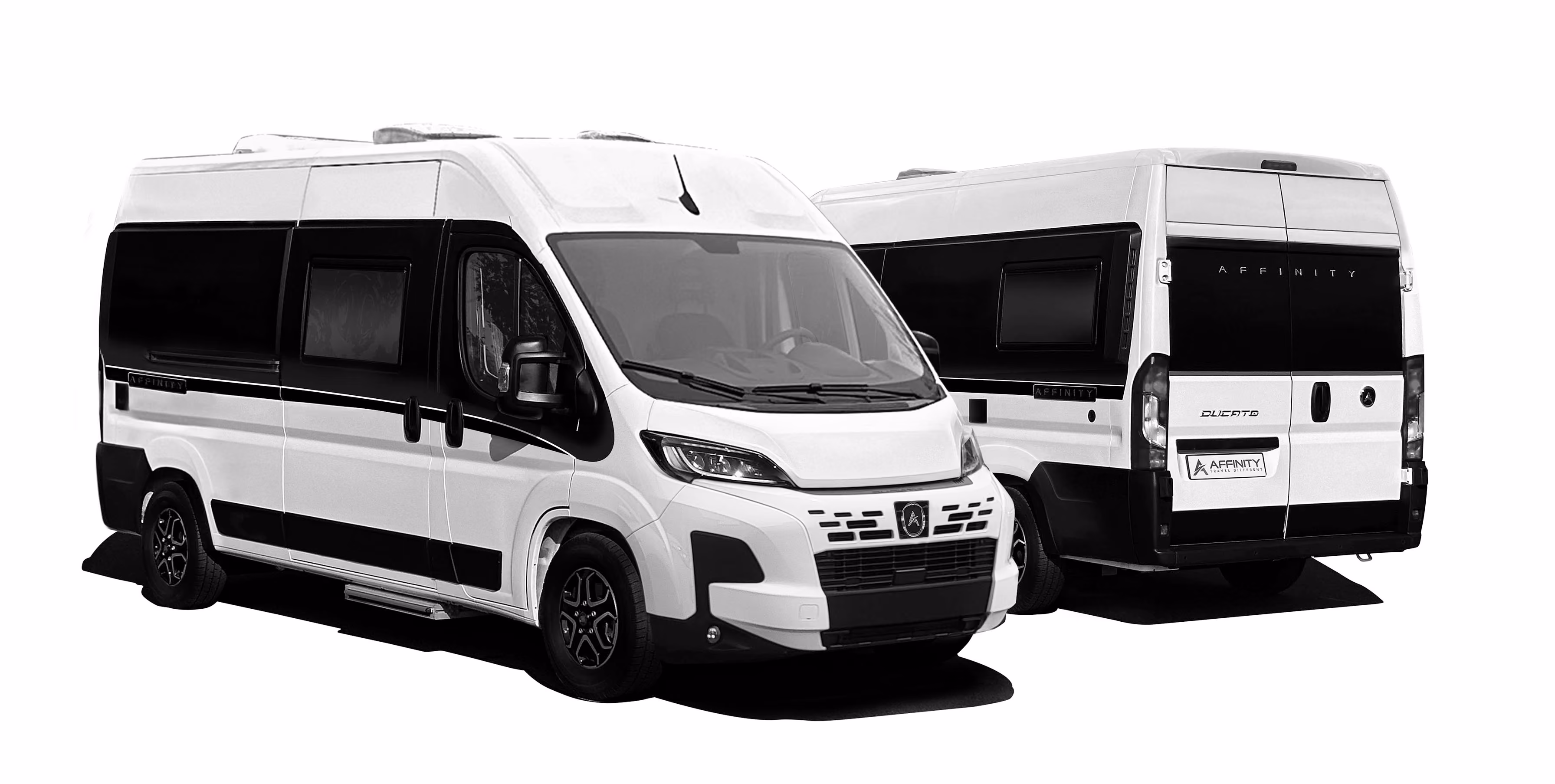

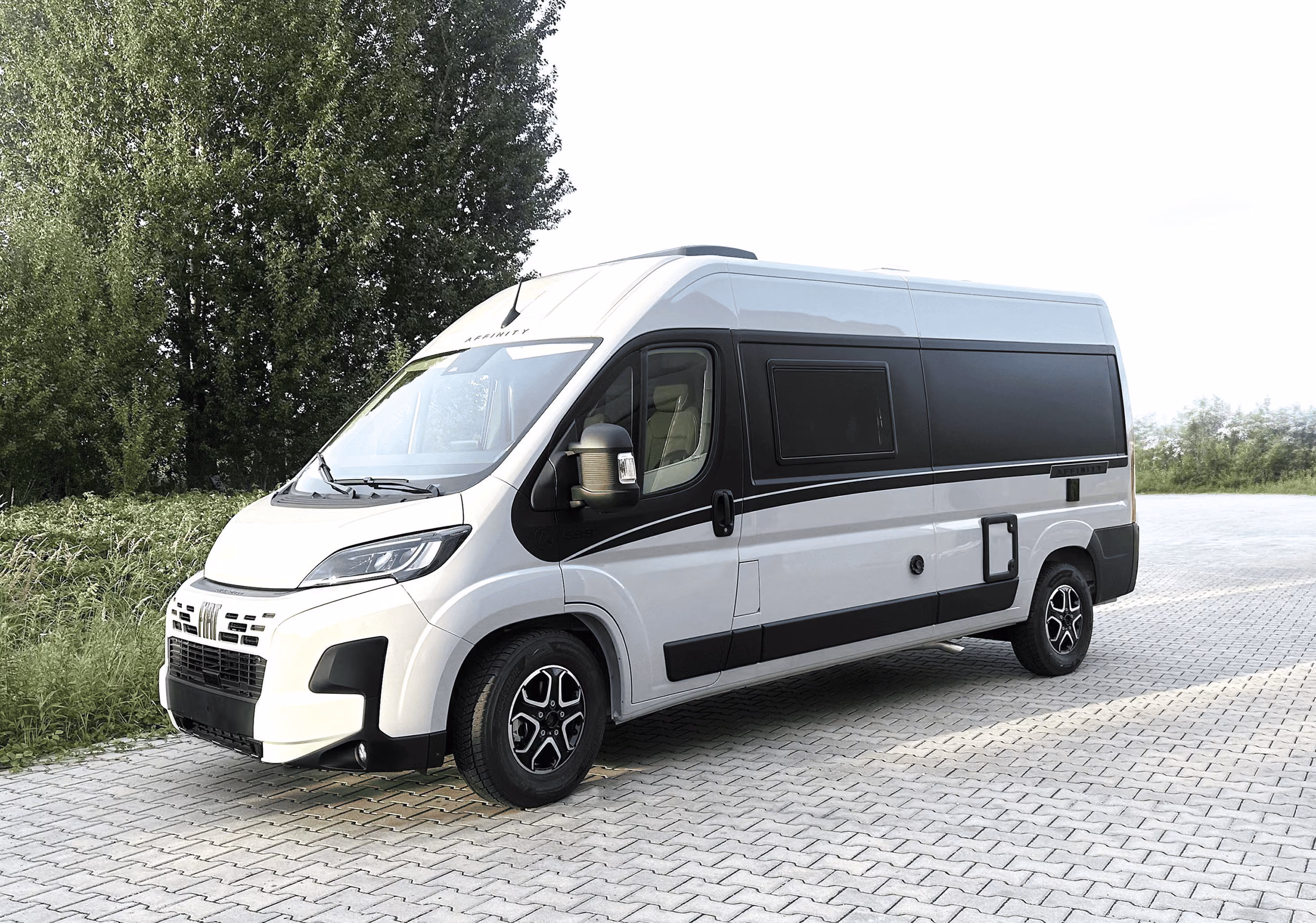

Affinity 599

Base vehicle: Fiat Ducato
Engine: 2.2L, 180HP
Gearbox: automatic
Dimensions: 599 x 229 x 260 cm

Number of seats: 4
Day
Sleeping places: 3
Night

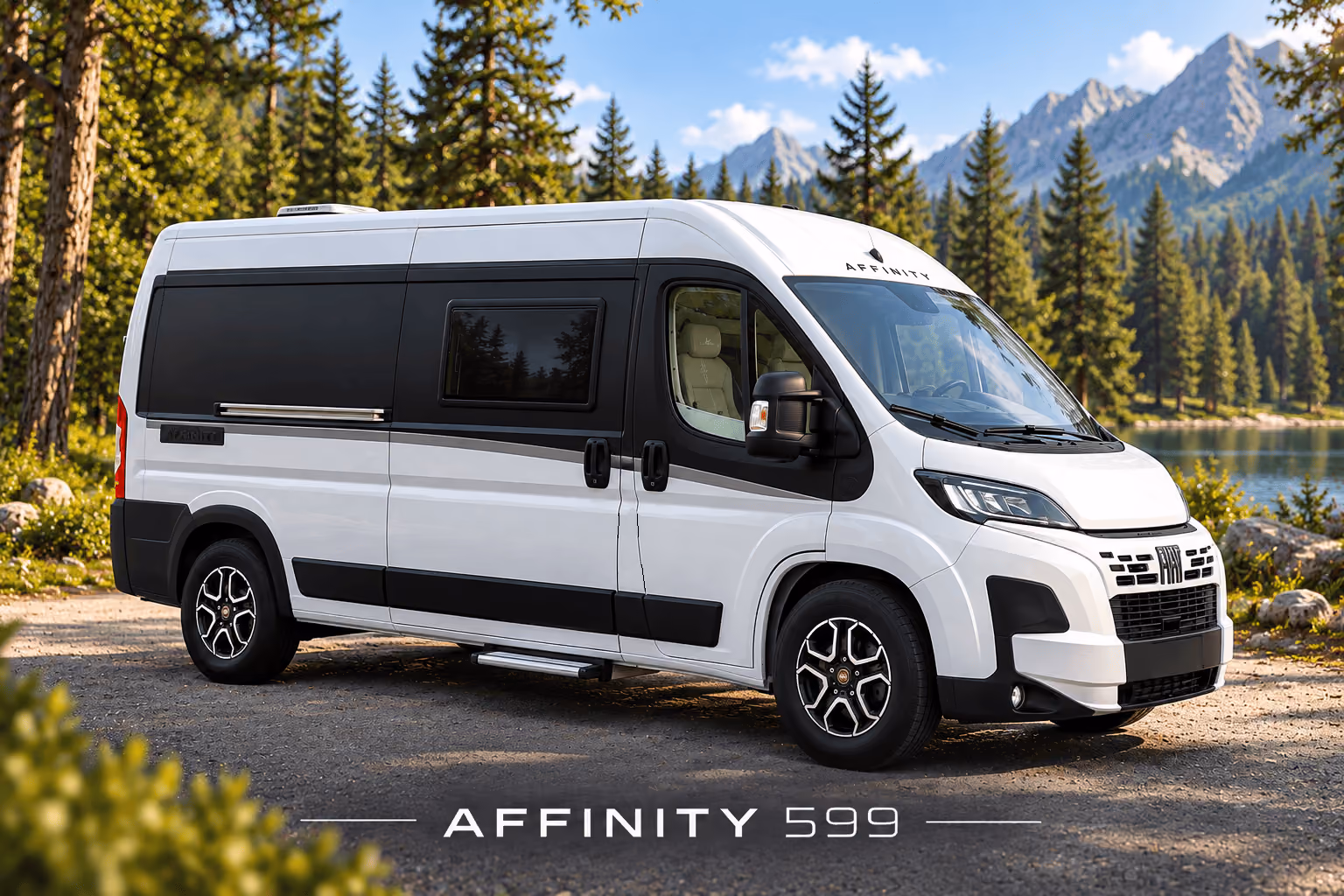

Affinity 599

Base vehicle: Fiat Ducato
Engine: 2.2L, 180HP
Gearbox: automatic
Dimensions: 599 x 229 x 260 cm

Number of seats: 4
Sleeping places: 3
Day
Night

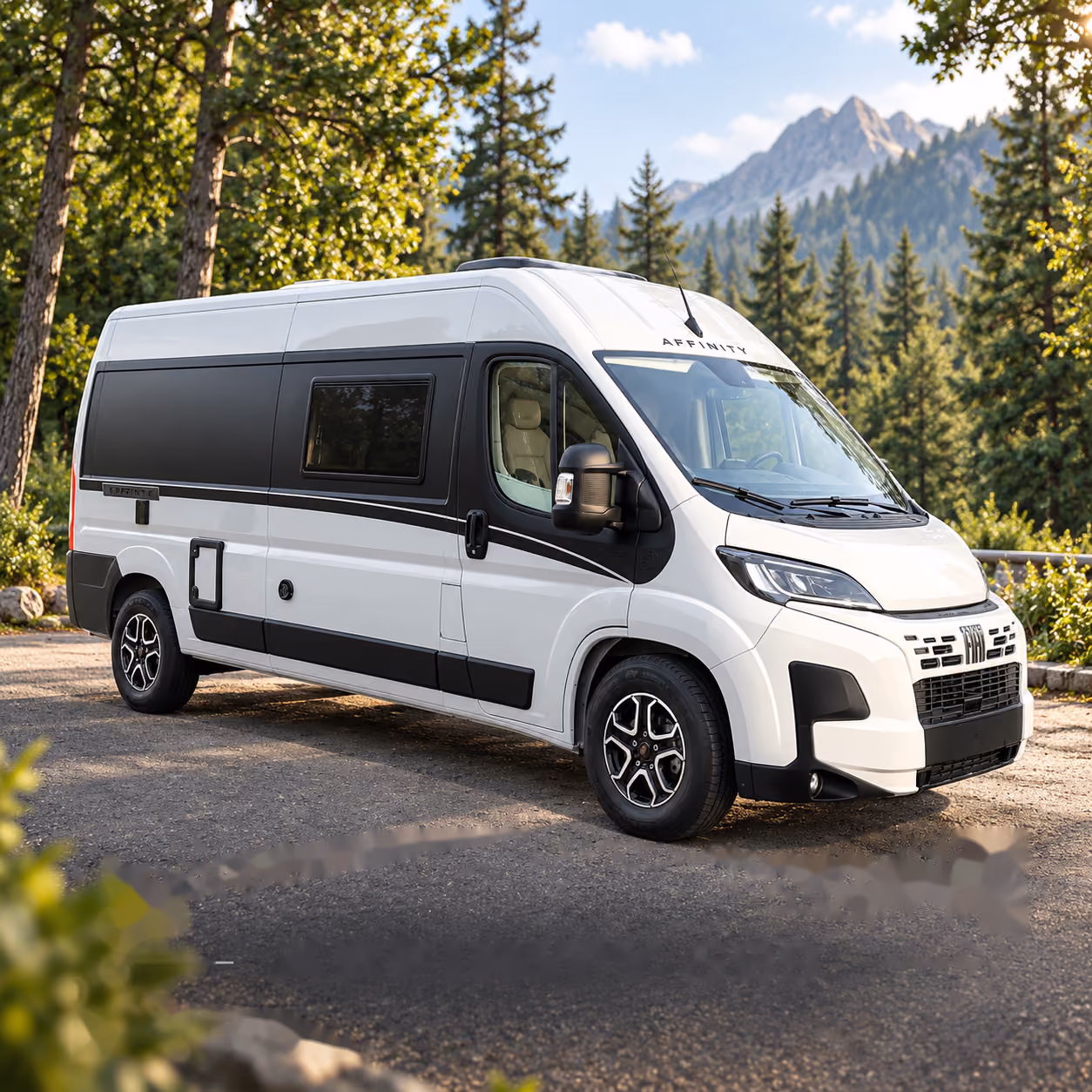

Compact size and popular interior layout

Affinity 599 is one of the models that expands the brand's offer to include H2 (260 cm high) vehicles. Its layout is based on a design that is very popular among campervan customers, featuring a bathroom in the middle of the vehicle and a large bed running across the width of the vehicle. This interior layout allows for ample space for luggage and ensures the living area is comfortable to use. The short body length is a huge advantage when parking in difficult spots and tight parking lots.

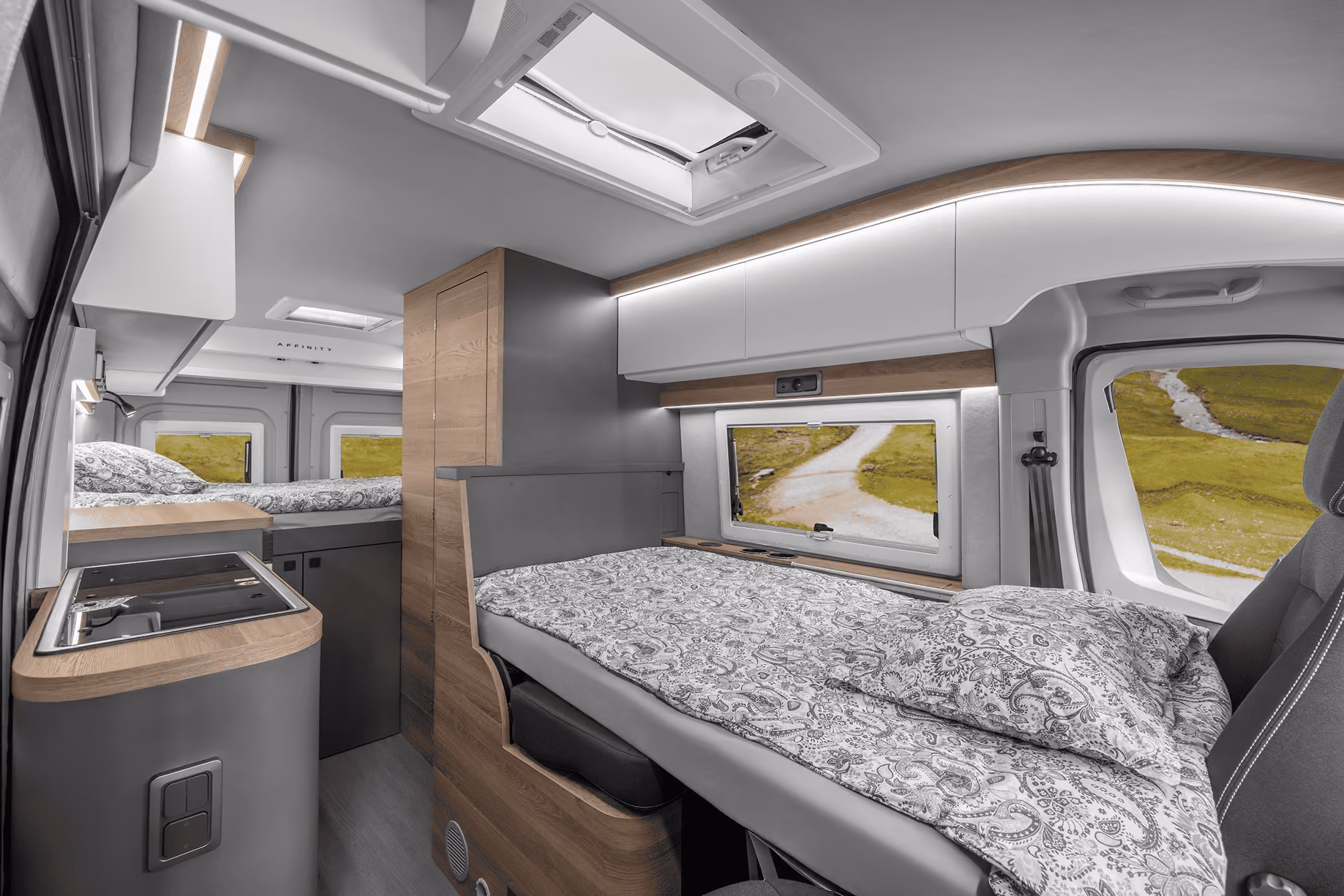

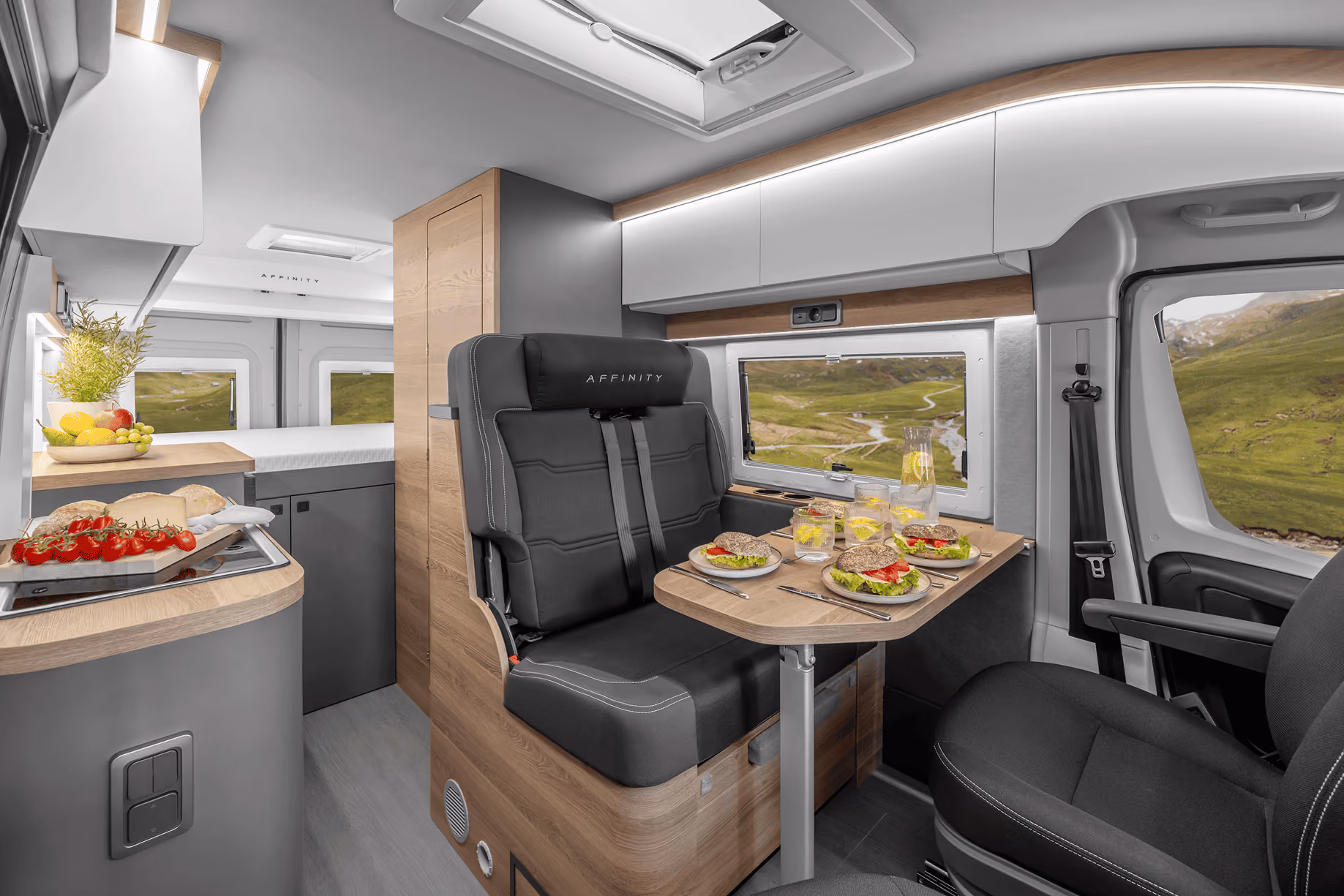

Unique atmosphere of the interior

All Affinity H2 models feature a clean and minimalist design, which gives the campervan's interior a home-like atmosphere. It is both functional and ergonomic. Despite its compact size, the living area of the Affinity 599 offers its users a comfortable environment for travel and relaxation.

Functional and aesthetic space

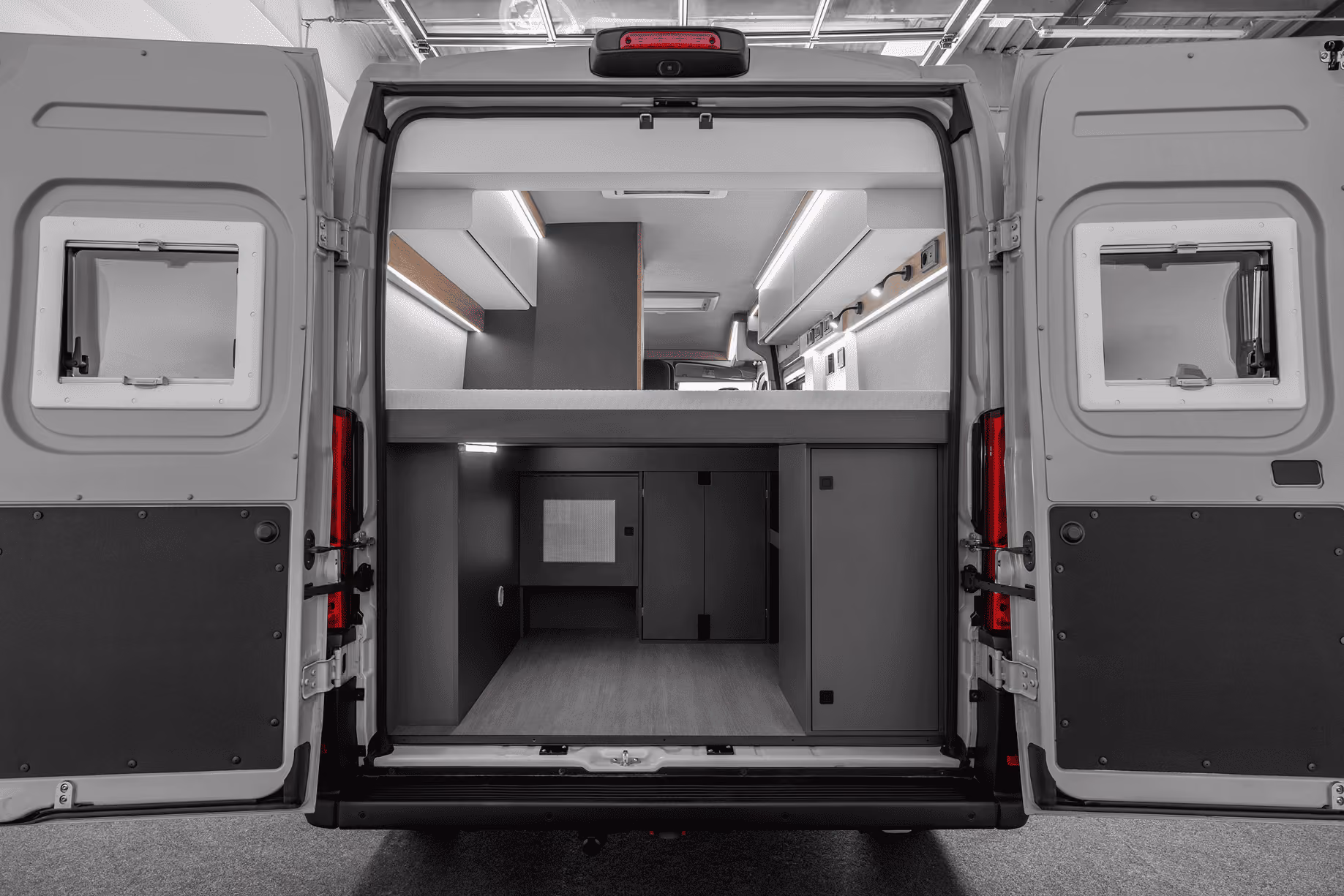

The Affinity 599 was designed so that its compact dimensions do not limit the vehicle's overall functionality. The wardrobe located under the bed features a hinged back panel that allows access to the luggage compartment from inside the vehicle. A retractable step makes it easier for shorter people to climb into bed. A pocket in the window sill at the front of the vehicle allows for the safe transportation of a table. Anyone who chooses to travel by this model will appreciate all these convenient features.

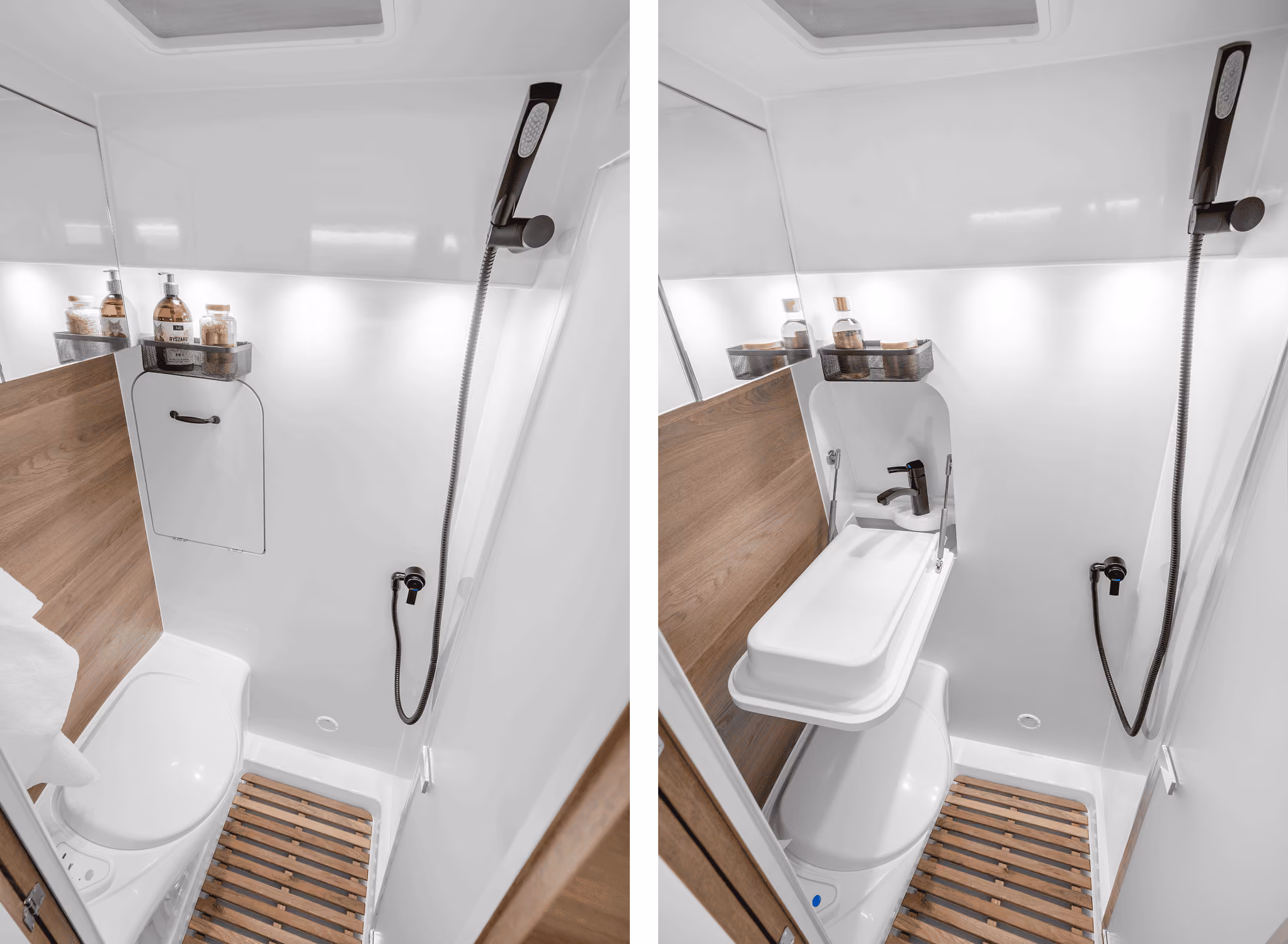

Compact and comfortable bathroom

The bathroom in Affinity 599 comes with a layout that is proven and popular with customers. Despite its compact size, the shower and toilet areas are very comfortable to use. A curtain under the bathroom cabinet protects towels and clothing while you shower. A fold-down washbasin, 230 V socket, mirror cabinet fronts are elements that increase the comfort of using this part of the campervan.

FLOOR PLANS

Day
4
3
2
1
1
Integrated
2
Cassette, 19 litres
3
Gas, 2 burners
Night
2
1
1
190 x 140 cm
2
170 x 90 cm

CONCEPT

The model range based on the Fiat Ducato L4H2 and L3H2 is Affinity's answer to the expectations of customers looking for a very popular interior layout with a bathroom in the middle of the vehicle. All models are available with a pop-up roof option. This solution allows you to increase the number of sleeping places without limiting the space inside the vehicle.

INNOVATIONS

Affinity 599 is a campervan with optimal dimensions for travelling and a very popular interior layout. The large luggage compartment allows you to carry all the accessories you need for your trip. The abundance of storage compartments and cabinets, compact and functional bathroom, ensure a high level of comfort for users both whilst travelling and relaxing.

SPECIFICATIONS

FIAT Ducato

2.2L, 180 KM
automatic gearbox
Parking sensors
Full LED headlamps
More details

STANDARD EQUIPMENT

4 seats for driving, 3 berths (double benchwith fabric upholstery converting into a single bed)
French bed with adjustable headboard
Truma Combi 4E gas-electric heating
LiFePO4 135 Ah board battery
Cab window blinds
Electric entry step (70 cm)
Flyscreen on entry door
Wireless phone charger
Skylight with electric fan in lavatory
Wall, floor and ceiling insulation
10/20 mm
Shower cabin
Integrated
Chemical toilet
Cassette, 19 litres
Skylights
x2
Hob
Gas, 2 burners
Refrigerator
90 L
Clean water tank (insulated)
100 L
Grey water tank (insulated)
75 L

OPTIONAL EQUIPMENT

Rated for 2 people
Single coach seats (leather/fabric)
Pop-up roof
Isofix
Truma 6E heater
Truma D6E heater
Solar package (monocrystalline): 240W Flex MPPT, BT
Solar package (monocrystalline): 300W Flex MPPT, BT
Solar package (monocrystalline): 360W Flex MPPT, BT
LiFePO4 200 Ah battery with BT
LiFePO4 300 Ah battery with BT
Gel battery 130 Ah
Inverter 2000W
Truma Aventa Comfort roof air conditioning
LCD control panel
Premium electrical system
2 additional speakers
Mattress with additional layer
Bed sheet with Affinity logo
Rear door curtain
Induction cooker
Seat cover with Affinity logo
Heated front seats
Safe
Drawers in the kitchen
TV cabinet (holder only)
TV cabinet (holder + 19” TV)
TV cabinet (holder + 19” Smart TV)
External TV socket
Wooden shower mat
Clesana Toilet
External shower
White awning
Black awning
Keder rail
Removable towbar
Rigid towbar
Thule VeloSwing towbar
Pneumatic rear-axle suspension
Softclose
External gas connection
Light interior colour
Grey interior colour
Metallic paint - Black / Artense grey / Fer grey
Basis paint (Pastell) - Lanzarote grey / Expedition grey

DIMENSIONS

Length
599 cm
Width
229 cm
Height
260 cm
Mass of the vehicle in running order
3090 kg
Internal height
189 cm
Rear bed
190 x 140 cm
Additional bed (rear bench)
170 x 90 cm
Pop-up roof (option) sleeping area
200 x 120 cm
Mass of the vehicle in running order is defined as the mass of the vehicle including equipment, fuel tank 90% full, 75 kg driver weight, full 11L aluminium gas bottle, 20L of water in the system. Margin of error +/- 5%.
