AFFINITY one

Base vehicle: Fiat Ducato
Engine: 2.2L, 180HP
Gearbox: 9 gear automatic transmission
Dimensions: 636 x 220 x 290 cm

Number of seats: 4
Day
Sleeping places: 4
Night

AFFINITY one

Base vehicle: Fiat Ducato
Engine: 2.2L, 180HP
Gearbox: 9 gear automatic transmission
Dimensions: 636 x 220 x 290 cm

Number of seats: 4
Sleeping places: 4
Day
Night

ENJOY THE SPACE

The Affinity Camper Van offers a comfortable living space for up to four people. Flexible configuration allows the vehicle to be adapted to a variety of user needs, from two travellers to a family of four. Based on the largest van in the Fiat range, it is designed to provide maximum interior space.

Its unique layout, large roof windows, pleasant and indirect lighting, modern materials and neat furniture colours together create a homely and spacious interior.

BE COMFORTABLE

Wide and comfortable sliding doors lead to the camper’s spacious interior. Everything from lockers and cabinets to technical equipment is easily accessible.

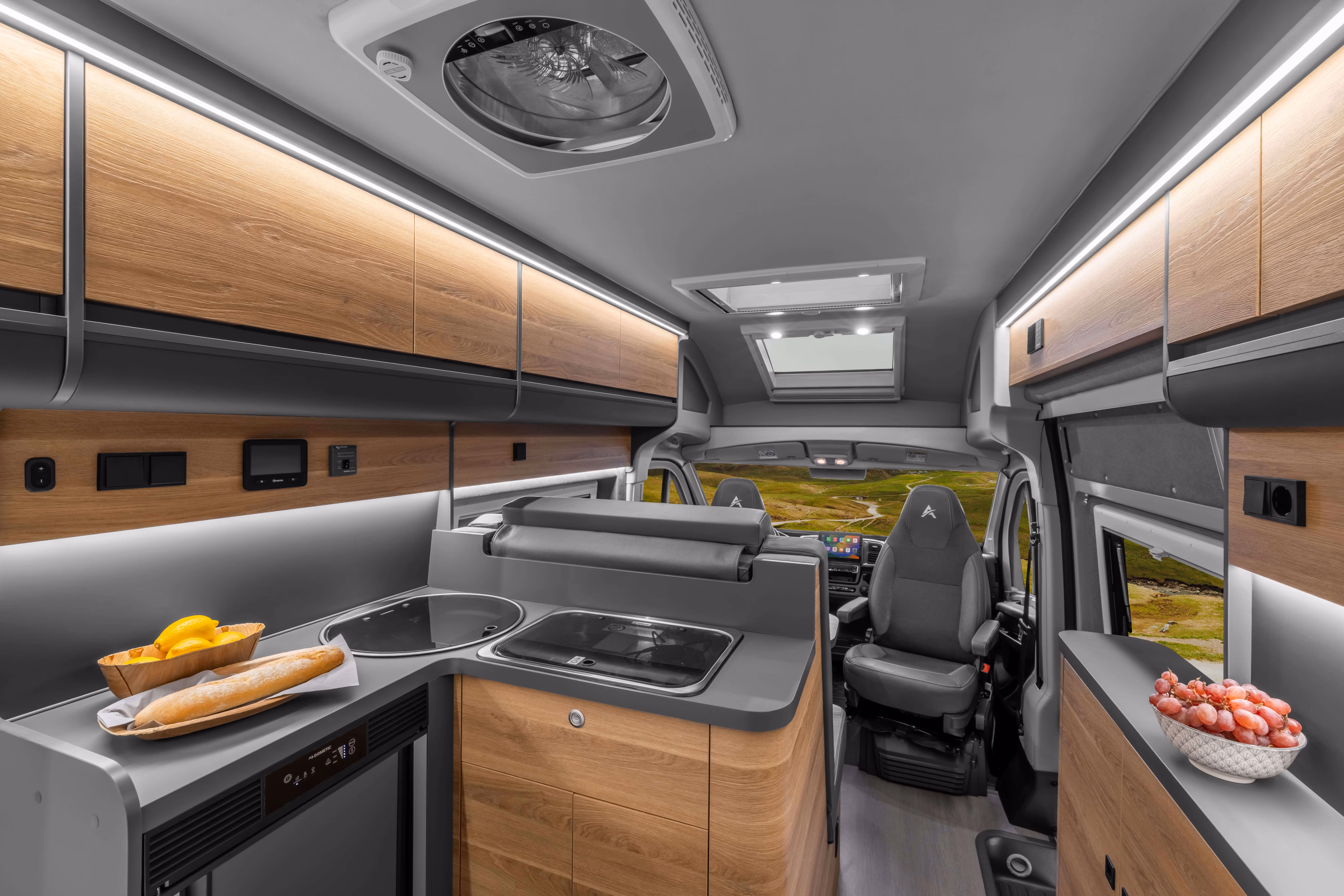

An L-shaped kitchen with a large worktop, integrated shower cabin, cosy dining and bedroom areas make the Affinity a truly comfortable recreational vehicle.

FEEL AT HOME

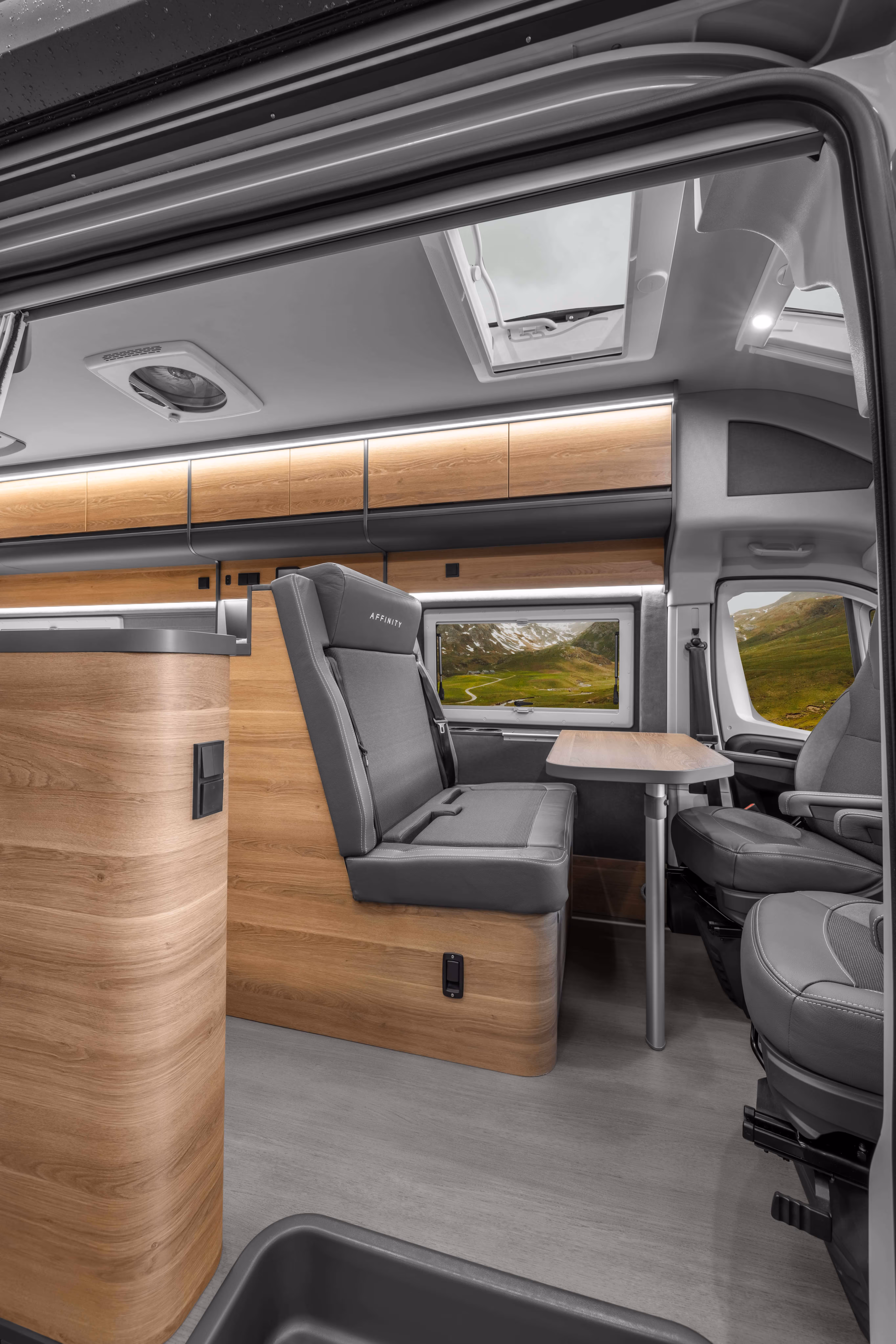

The Affinity Camper Van stands for top-quality materials as well as top-notch design and functionality. Comfortable armchairs and beds in the camper’s aesthetically pleasing interior will make you feel right at home.

SLEEP WELL

Fitting beds for four people inside a vehicle this big is quite a challenge as it requires an innovative approach and out-of-the-ordinary ideas.

The Affinity Camper Van can be configured with up to four comfortable sleeping places: a large French double bed in the back and a unique foldable bunk bed in the front.

FLOOR PLANS

Day
4
3
2
1
1
Integrated
2
Cassette, 19 litres
3
Gas, 2 burners
Night
2
1
1
192 x 129 cm
2
Upper level: 192 x 67 cm
Lower level: 182 x 67 cm

CONCEPT

The Fiat Ducato provides the best platform for a camper as it offers the greatest freedom in terms of interior design.

We modified the sidewalls, widening the frame by a few centimetres on each side, thanks to which we were able to fit a French bed inside that is almost 130 centimetres wide.We also made modifications to the front part of the roof by installing a large window above the cab. This allowed us to gain additional useful space and create a vehicle that is easy on the eye.

Under the bonnet, we have taken a completely new approach by placing heavy technical components such as a second battery as well as clean and grey water tanks at the rear for optimal weight distribution.

A modern electric system ensures the reliable operation of all the accessories installed. The lithium battery, numerous electrical sockets, USB ports and a wireless phone charger guarantee comfort of use. In the boot, there is a special pocket with a 230V socket for an electric vehicle charger. The vehicle can be equipped with solar panels of up to 360 watts.

The Affinity Camper Van is fully prepared for use in winter thanks to its double floor and excellent insulation. Heating is provided by Truma Combi. The entire water system, including the tanks, is located in the heated space.

A relatively large bathroom is located in the back of the van next to the French bed and inside you will find a foldable washbasin and a cabinet equipped with 230 V socket behind the mirror.

Innovations

The Affinity is the only camper van that comes with a spacious L-shaped kitchen. Thereby it is now a pleasure to prepare meals inside the vehicle.

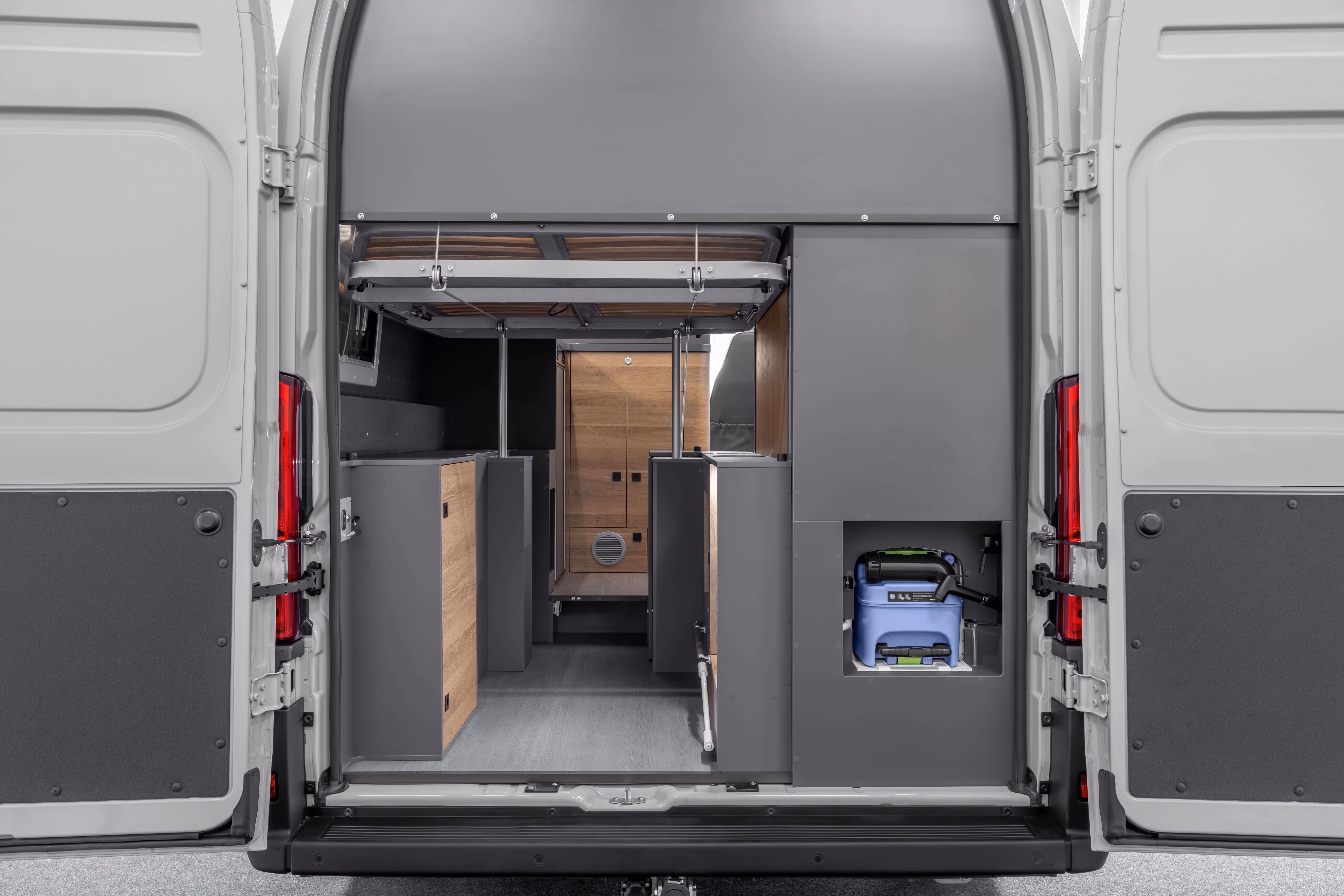

However, the biggest innovation is the beds. Thanks to the raised head, the main bed can be slid away thus increasing the kitchen area. The main bed can be equipped with an electric lifting mechanism. This way, the already large boot will become big enough to carry two normal-sized bicycles.

TECHNICAL SPECIFICATIONS

FIAT DUCATO

2.2L, 180HP
9 gear automatic transmission
Passenger-side airbag
Full LED headlamps
Read more

Standard Equipment

4 driving places and 2 sleeping berths (optional 4+3, 4+4)
French bed with adjustable headboard
Truma Combi 4E gas-electric heating
LiFePO4 135 Ah Board Battery
Double floor
Cab window blinds
Electric entry step (70 cm)
Flyscreen on entry door
Cordless phone charger
Roof vent with electric fan in kitchen
Skylight with electric fan in lavatory
Panoramic window above driver cabin
Wall, floor and ceiling insulation
10/20mm
Shower cabin
Integrated
Chemical toilet
Cassette, 19 L
Skylights
x3
Cooker
Gas, 2 burners
Refrigerator
90 L
Clean water tank (insulated)
110 L
Grey water tank (insulated)
100 L

OPTIONAL EQUIPMENT

Rated for 2 people
In the 2-person version, the rear bench is not
intended for passenger transport (no safety belts)
3 Berths
4 Berths
Truma 6E heater
Truma D6E
Solar package (monocrystalline) 240W Flex MPPT, BT
Solar package (monocrystalline) 300W Flex MPPT, BT
Solar package (monocrystalline) 360W Flex MPPT, BT (option without roof air conditioning)
LiFePO4 200 Ah Winter board battery with BT
LiFePO4 300 Ah Winter board battery with BT
Gel Battery
Büttner 1700 pure sine wave inverter
Inverter cabling system
Truma Aventa Comfort roof air conditioning
External gas connection
Safe
White awning
Black awning
Keder Rail
Tow bar
Heated front seats
Pneumatic rear-axle suspension
Softclose
External shower
TV cabinet (holder only)
TV cabinet (holder only + 18,5’ TV)
TV cabinet (holder only + 18,5’ Smart TV)
External TV socket
Caratec LTE Antenna plus router
Oyster Connect
LCD control pane
2 additional speakers
Bed lifting mechanism
Mattress with additional layer
Isofix
Drawers in the kitchen
Rear door curtain
Bed sheet with Affinity Logo
Seat cover with Affinity logo
Wooden shower mat

DIMENSIONS AND WEIGHT

Length
636 cm
Width
220 cm
Height
290 cm
Weight in running order
3090 kg
Interior height
196 cm
French bed dimensions
192 x 129 cm
Optional bunk bed dimensions
Upper bed
192 x 67 cm
Lower bed
182 x 67 cm
Mass of the vehicle in running order is defined as the mass of the vehicle including equipment, fuel tank 90% full, 75 kg driver weight, full 11L aluminium gas bottle, 20L of water in the system. Margin of error +/- 5%.
