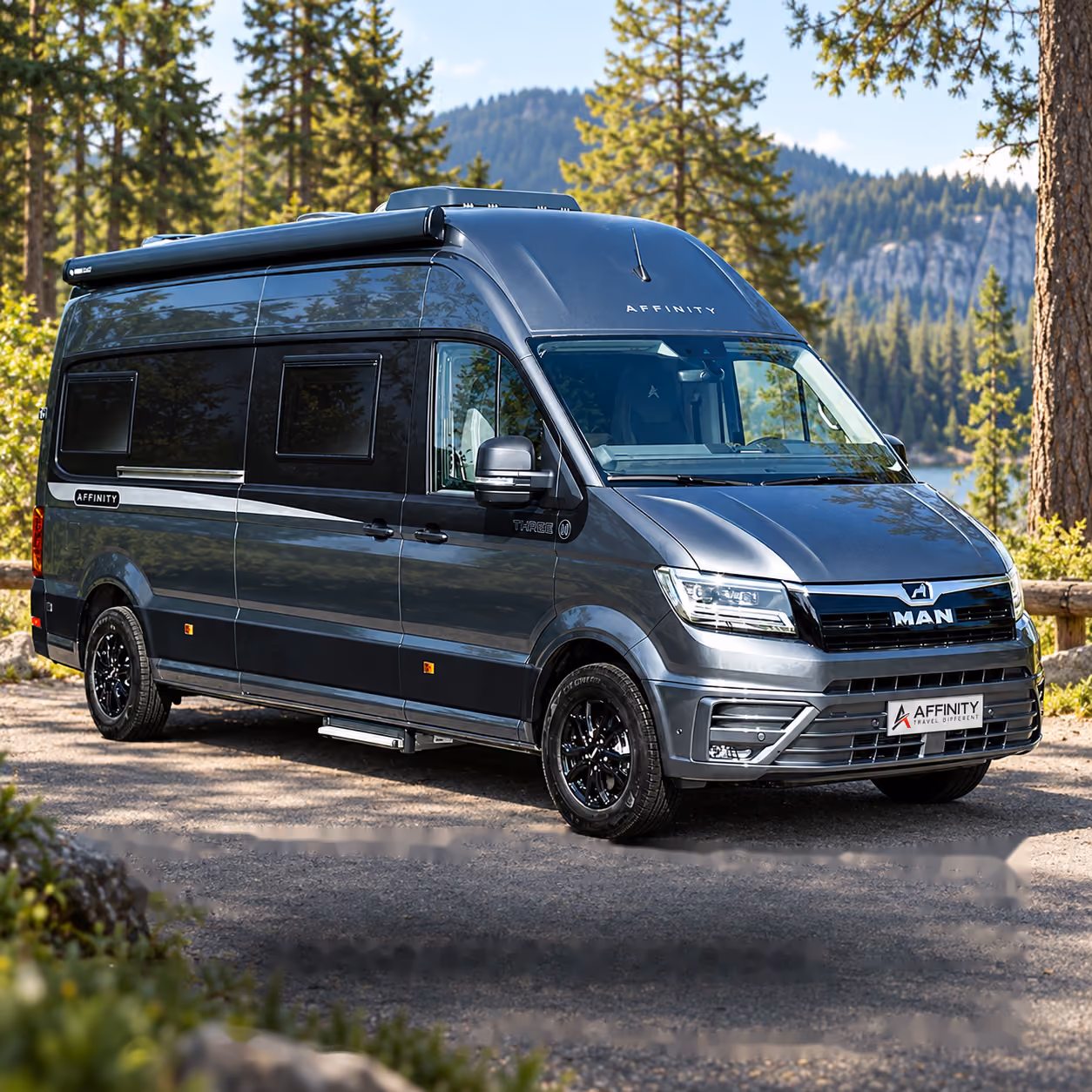

Affinity M Three

Base vehicle: MAN TGE
Engine: 2.0 L, 177 HP
Gearbox: 8 gear automatic transmission
Dimensions: 599 x 219 x 290 cm

Number of seats: 4
Day
Sleeping places: 3
Night

Affinity M Three

Base vehicle: MAN TGE
Engine: 2.0 L, 177 HP
Gearbox: 8 gear automatic transmission
Dimensions: 599 x 219 x 290 cm

Number of seats: 4
Sleeping places: 3
Day
Night

Well organised space

Affinity M Three is a campervan dedicated for people who travel a lot. The compact dimensions combined with the driving characteristics of the MAN TGE guarantee the driver huge driving comfort. Despite the very limited space, the functional layout of this model allows to travel comfortably in configuration 2+1 or 2+2. The possibility of raising the bed to the ceiling allows to increase the space significantly for everyday activity.

Sleep comfortably

Main, double bed is equipped with an electrical lifting system. When it’s not used – the bed can be raised up. When we go to sleep it can be lowered to the level of 90 cm above the floor. The space that remains between the mattress and the ceiling is approx. 110 cm.

If we are traveling in 3 or 4 people we can stop the upper bed at a higher position. Then after unfolding the sofa, an additional sleeping place is created for one adult or two children.

Comfort of use

The solution with a raised bed allows significantly increase the space of the everyday use of the campervan. A L-shaped kitchen, a bathroom with separate shower cabin, a comfortable sofa with optimally slanted backrest enable comfortable use of all daily zones. After lowering the bed, there is still a large space for communication – access to the bathroom and exit from the vehicle is not blocked. It's possible to use a cooker and the fridge.

FLOOR PLANS

Day
4
3
2
1
1
66 x 57 cm
2
Cassette, 19 litres
3
Gas, 2 burners
Night
1
1
Upper level:
188 x 122 cm
lower level:
182 x 105 cm

CONCEPT

The task we set for ourselves before starting work on new models was the maximum optimization of the space offered by the short version of the MAN TGE. The solution with a raised bed allows for an alternative use of the living space – during the day the interior is intended for the kitchen and dining room, at night it turns into a bedroom.

Innovations

As with other versions of the Affinity, the functional layout of this vehicle has a unique character. The solution with the drop-down bed to the level of the kitchen counter, a sofa bed and an L-shaped kitchen is a combination that is only available in the Affinity M Three.

The divided space in the boot and the storage room over the bathroom provide enough space for all travel essentials.

TECHNICAL SPECIFICATIONS

MAN TGE

2.0 L, 177 HP
8 gear automatic gearbox
Driver and front passenger airbag with front passenger airbag deactivation
LED headlamps with LED separately daytime running light
Read more

STANDARD EQUIPMENT

4 seats for driving, 3/4 sleeping berths
Truma Combi 4E gas-electric heating
LiFePO4 120 Ah board battery
Cab window blinds
Electric entry step (70 cm)
Flyscreen on entry door
Roof vent with electric fan in kitchen
Skylight with electric fan in lavatory
Wall, floor and ceiling insulation
20 mm
Separate shower cabin
66 x 57 cm
Chemical toilet
Cassette, 19 L
Skylights
x2
Turbovent
x2
Cooker
Gas, 2 burners
Refrigerator
70 L
Grey water tank (insulated)
100 L

OPTIONAL EQUIPMENT

Truma 6E heater
Truma D6E
Solar package (monocrystalline) 120W Flex MPPT, BT
Solar package (monocrystalline) 240W Flex MPPT, BT
Solar package (monocrystalline) 360W Flex MPPT, BT (option without roof air conditioning)
LiFePO4 150 Ah board battery with BT
LiFePO4 200 Ah LionTron board battery with BT
LiFePO4 200 Ah Winter board battery with BT
Gel Battery
Büttner 1700 pure sine wave inverter
Inverter cabling system
Truma Aventa Comfort roof air conditioning
Lightweight gas cylinder with external filling connection
Wooden shower mat
Black awning
Keder Rail
Tow bar
Heated front seats
Pneumatic rear-axle suspension
Softclose
External shower
Caratec LTE Antenna plus router
Oyster Connect
LCD control pane
2 additional speakers
Mattress with additional layer
Bed sheet with Affinity Logo
Seat cover with Affinity logo

DIMENSIONS AND WEIGHT

Length
599 cm
Width
219 cm
Height
290 cm
Interior height
192 cm
Upper bed
188 x 122 cm
Lower bed
182 x 105 cm
Weight in running order
3050 kg
Mass of the vehicle in running order is defined as the mass of the vehicle including equipment, fuel tank 90% full, 75 kg driver weight, full 11L aluminium gas bottle, 20L of water in the system. Margin of error +/- 5%.
